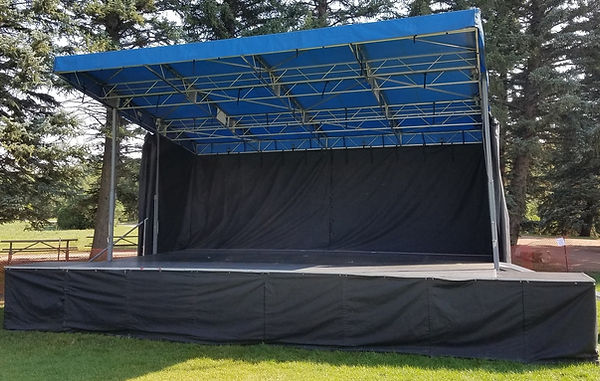

PERFORMANCE DIMENSIONS

Stage Floor........................................................24' x 16'

Stage Floor Height (from ground)..................44"

​

MAXIMUM FRONT CANOPY

Height from floor..............................................12' 6"

​

MAXIMUM REAR CANOPY

Height from floor..............................................9' 6"

​

ALLOWABLE LOADS

Stage floor load................................................100 psf

​

TENT CANOPY LOADING

Single side loaded............................................1,640 lbs

Both Sides loaded............................................2,800 lbs

Maximum lifting capability...............................600 lbs

​

WIND SPEED

Maximum............................................................50-60mph gusts

Maximum uplift on roof....................................13 psf

​

WEIGHT

Gross vehicle weight........................................4,240 lbs

Hitch tongue load (empty)...............................350 lbs

​

TOWING DIMENSIONS

Overall Length (including hitch).....................28' 7"

Stage Length.....................................................24'

Stage Width.......................................................8' 5.5"

Overall Height...................................................9' 5.5"
